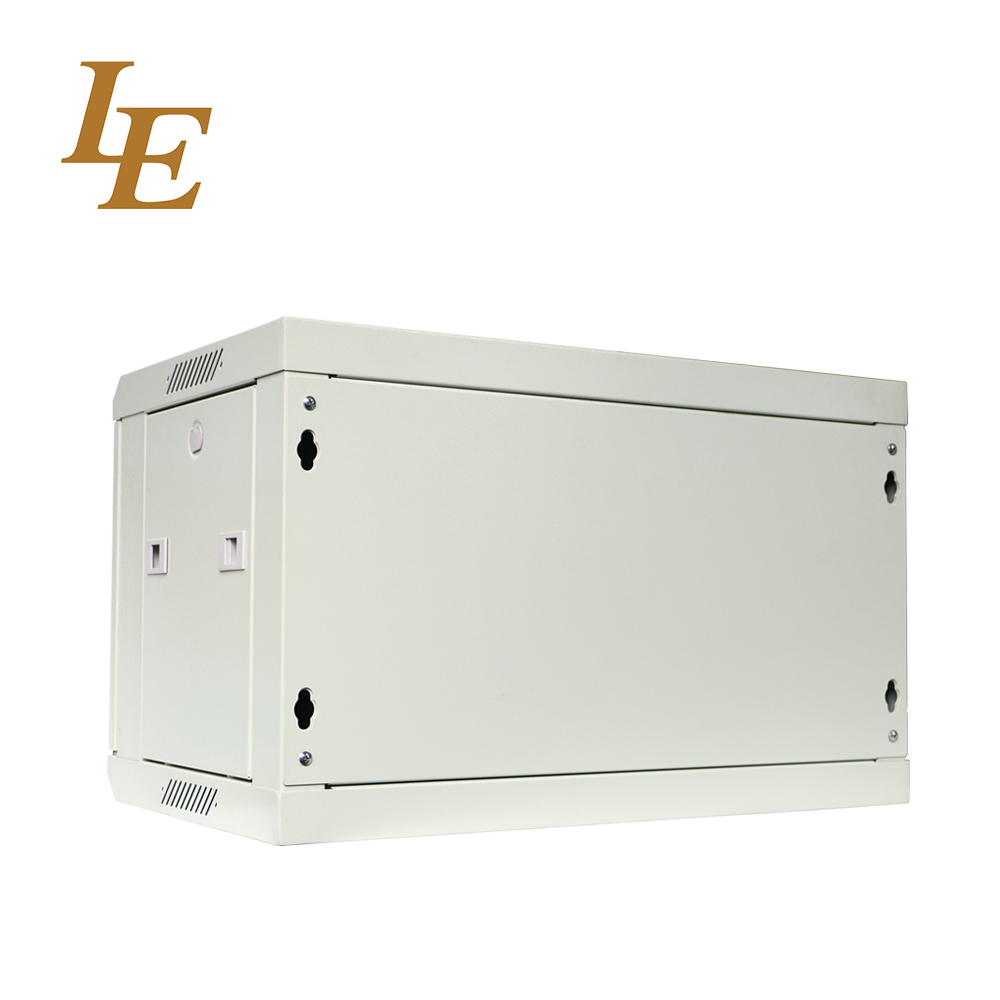

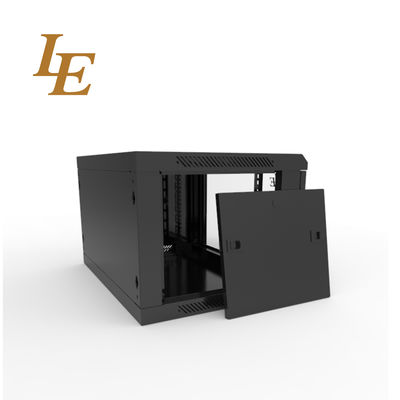

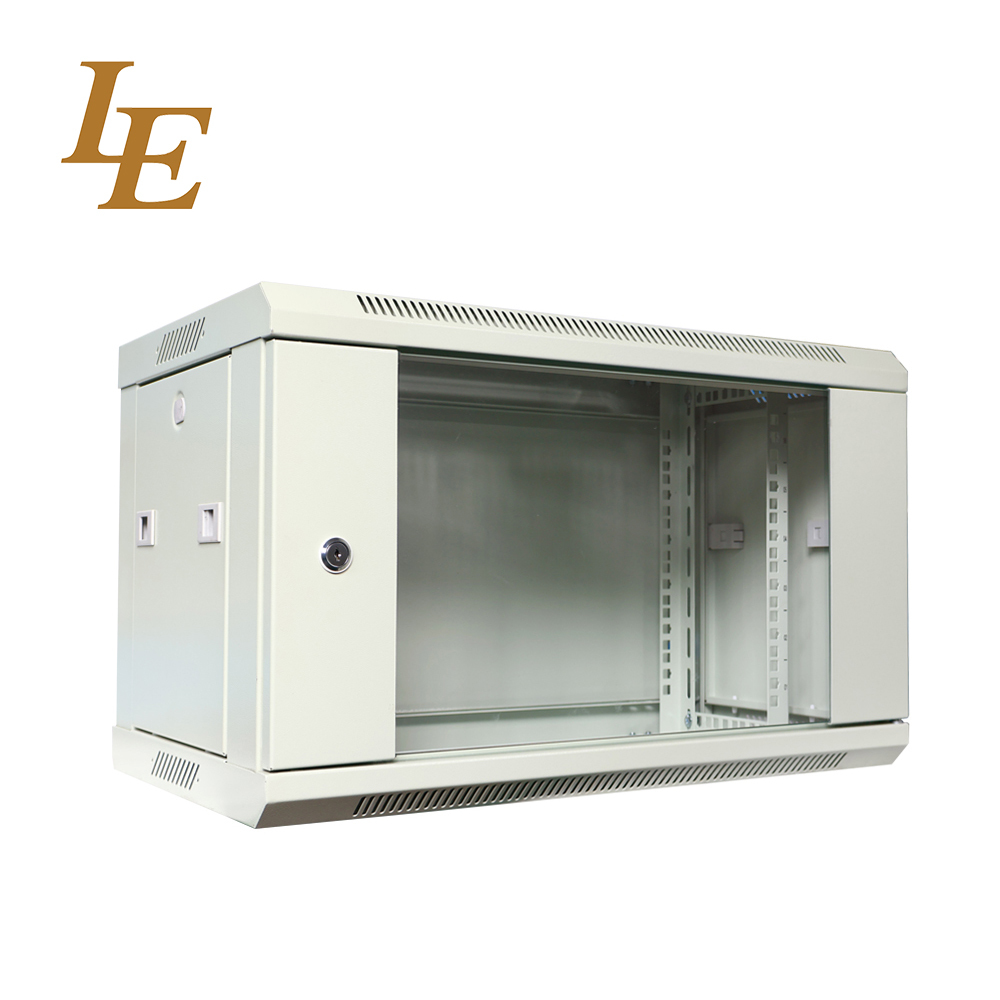

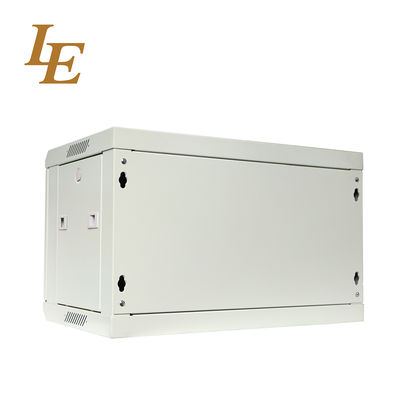

19 Inch Wall Mounted Rack Enclosure RAL7035 Grey RAL9004 Black 4U 6U 9U 12U Metal Cabinet 600mm Width 450mm/600mm Depth

اطلاعات پایه
محل منبع: ژجیانگ ، چین
نام تجاری: LE
گواهی: ISO 9001:2008,CE,ROHS,SGS,TUV,BV
شماره مدل: LE-WS3
مقدار حداقل تعداد سفارش: 1
جزئیات بسته بندی: بسته بندی تخت: کیسه پلاستیکی + گوشه محافظت شده + کارتن
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: L/C,T/T,Western Union,D/A,D/P
قابلیت ارائه: 5000 عدد در روز
ماتلا: فولاد نورد سرد با کیفیت SPCC رنگ:: Ral9004;Ral9005;Ral7035
ضخامت مواد: 1.2 میلی متر؛گلاس سخت:5.0mm ظرفیت بارگیری: 100 کیلوگرم
درجه حفاظت: IP20 عرض: 600 میلی متر
عمق: 450 میلیمتر، 600 میلیمتر قد: 4-22U

19 Inch Wall Mounted Rack Enclosure RAL7035 Grey RAL9004 Black 4U 6U 9U 12U Metal Cabinet 600mm Width 450mm/600mm Depth


19 Inch Wall Mounted Rack Enclosure RAL7035 Grey RAL9004 Black 4U 6U 9U 12U Metal Cabinet 600mm Width 450mm/600mm Depth 019 Inch Wall Mounted Rack Enclosure RAL7035 Grey RAL9004 Black 4U 6U 9U 12U Metal Cabinet 600mm Width 450mm/600mm Depth 1


General Description:

1. Welded frame, single section, compatible with 19" standard equipments;

2. 5mm tempered glass front door with over 180 turning degree;

3. Removable side panel, easy to install and lock optional;

4. Cable entry on the top and bottom;

5. L-shaped mounting profile, easy to adjustable on the mounting rail;

6. Fan cutout on the top, easy to install fan;

7. Installing back panel, easy to fix on the wall;

8. Various accessories for option;


S/N LE-WS3
Material SPCC quality cold rolled steel
Loading Capacity 100kg
Degree of Protection IP20
Surface Finish Degreasing,Pickling,Phosphating,Powder Coated
Production Specification 4-22U
Width 600mm
Depth 450mm,600mm
Color Ral9004;Ral9005;Ral7035


Order Codes Capacity W*D*H(mm)
LE-W3S-6404 4 600*450*279
LE-W3S-6604 4 600*600*279
LE-W3S-6412 12 600*450*634
LE-W3S-6612 12 600*600*634
LE-W3S-6422 22 600*450*1081
LE-W3S-6622 22 600*600*1081


Q1: Are you manufacturer of trading company?
A1: We are a manufacturer in Zhejiang, China.

Q2: When can we get the reply?
A2: Any inquiries will be replied within 24 hours, but holidays are excepted.

Q3: Can I get some samples?
A3: Yes, sample order is available for quality check and market test.

Q4: What is your payment term?
A4: We usually accepet T/T as the main payment term, and other payments can also be negotiated.

Q5: What is the delivery time?
A5: It usually takes about 15-30 days to prouduce the products

Q6: Quality problems?
A6: If there is any quality problem or question, we could offer technical support or return service
