خانه محصولاتکابینه سرور رک19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004

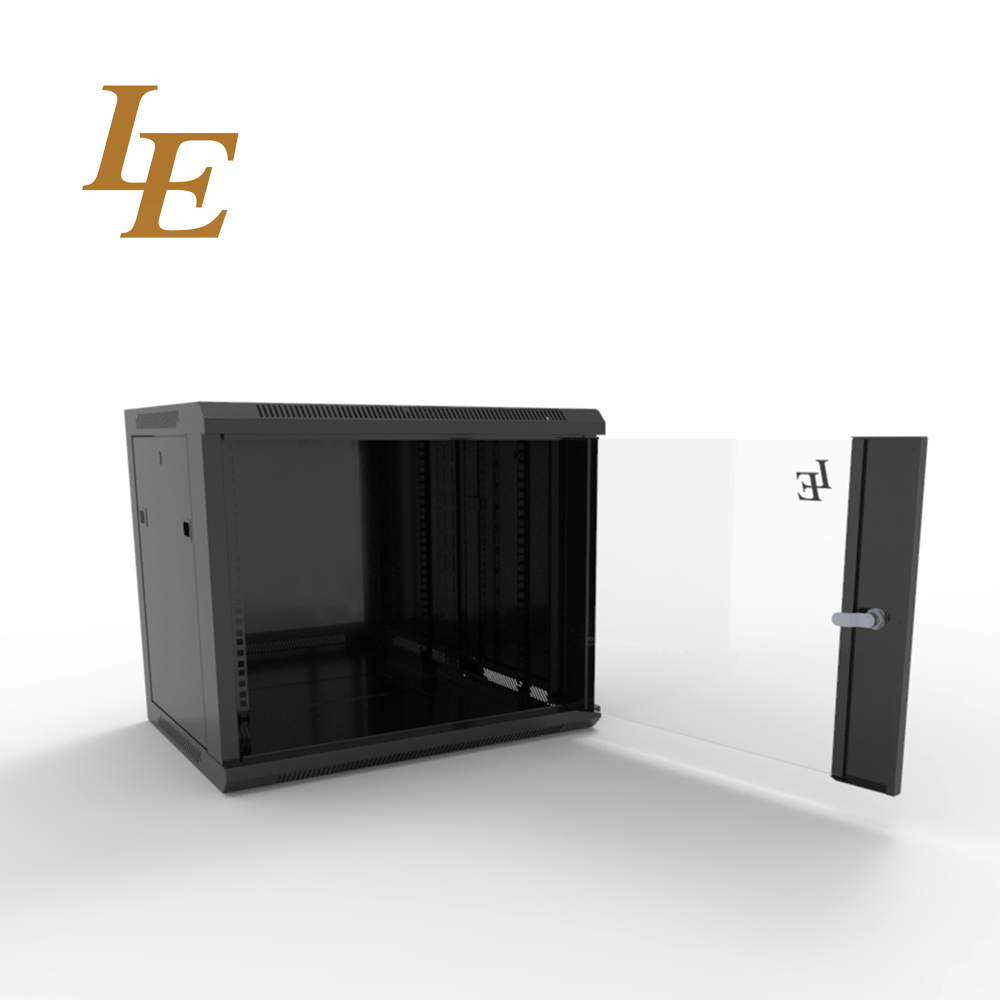

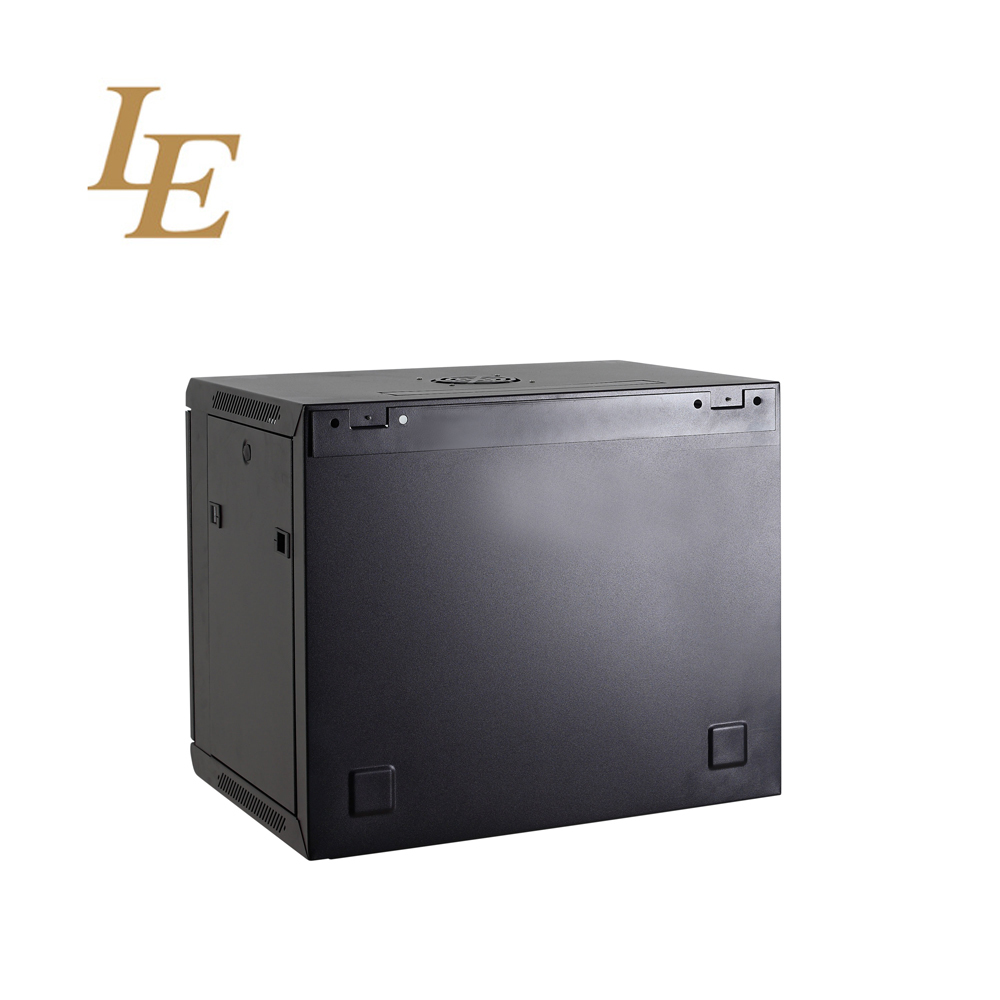

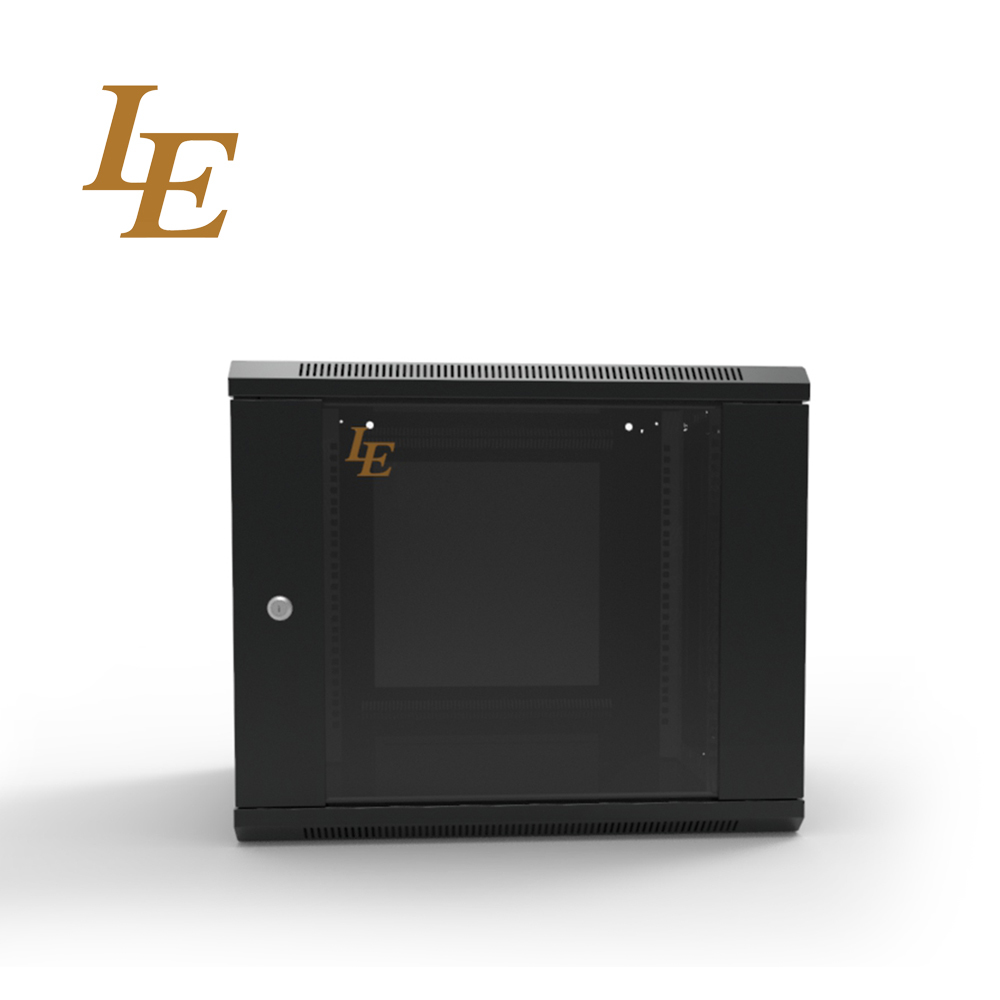

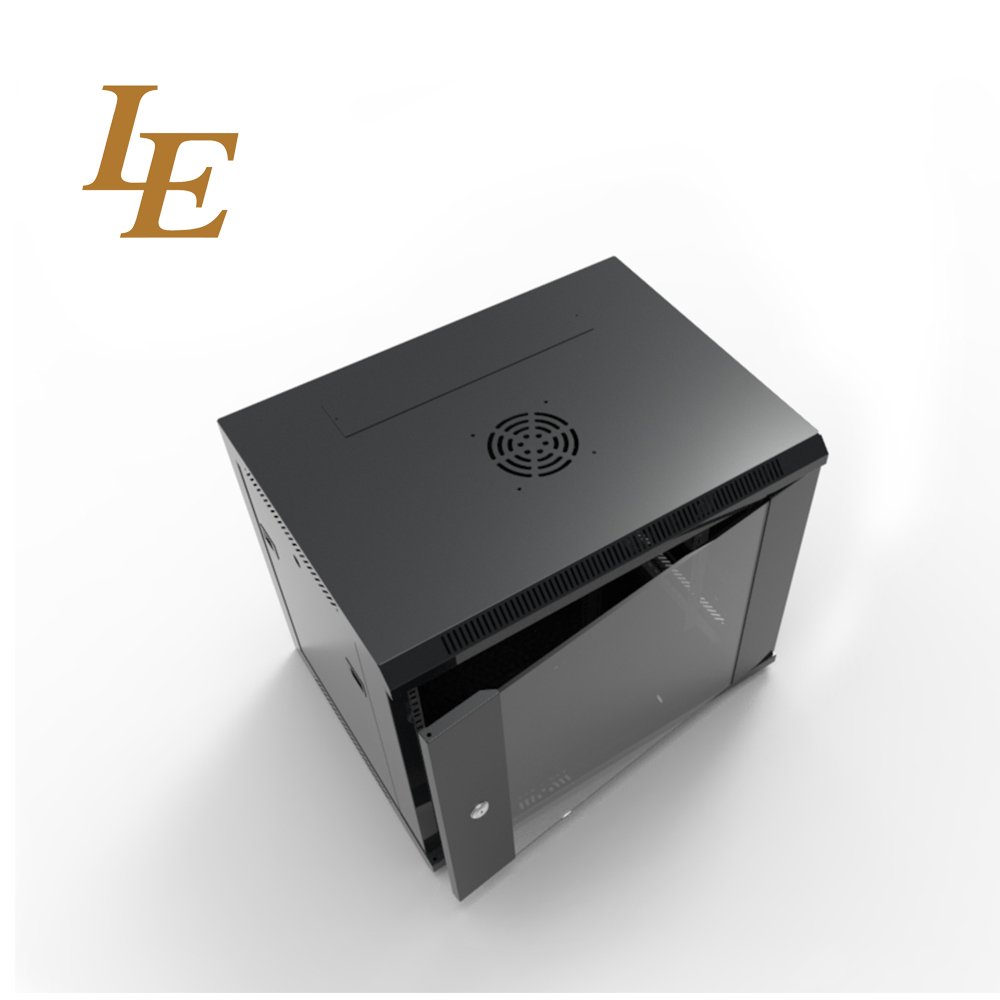

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004
19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004
اطلاعات پایه
محل منبع: چین
نام تجاری: LE or OEM
گواهی: CE ROHS
شماره مدل: LE-WS1
مقدار حداقل تعداد سفارش: 10 عدد
قیمت: USD25.5
جزئیات بسته بندی: بسته بندی مونتاژ شده
زمان تحویل: 30-45 روز
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union
قابلیت ارائه: 1000 قطعه در هفته
اکنون تماس بگیرید
مادی: فولاد نورد سرد با کیفیت SPCC ضخامت: 1.2 میلی متر
ضخامت شیشه گرم: 5 میلی متر ظرفیت بارگیری: 60 کیلوگرم
درجه حفاظت: IP20 پایان سطح: پاکسازی چربی، ترشی، فسفات، پوشاندن پودری
مشخصات محصول: 4U-27U عرض: 600 میلی متر
عمق: ۴۵۰ میلی متر، ۶۰۰ میلی متر رنگ: RAL9004, RAL9005, RAL7035
برجسته کردن:

19 inch wall-mounted server rack,9U server rack with fan,black server rack removable panels

,

9U server rack with fan

,

black server rack removable panels

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004


19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 019 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 119 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 2

S/N LE-WS1
Standard

Comply with ANS/EIA RS-310-D, IEC297-2,

DIN41491, PART1, DIN41491, PART7, ETSI Standard
Material SPCC quality cold rolled steel: Thickness:1.2mm;
Tempered glass: Thickness:5.0mm
Loading Capacity Static loading: 60kg
Degree of protection IP20
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification 4U-27U
Width: 600mm
Depth: 450mm, 600mm


19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 3

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 4

Main Structure


1. Installing Backboard

2. Mounting profile (L-shaped)

3. Cable entry plate

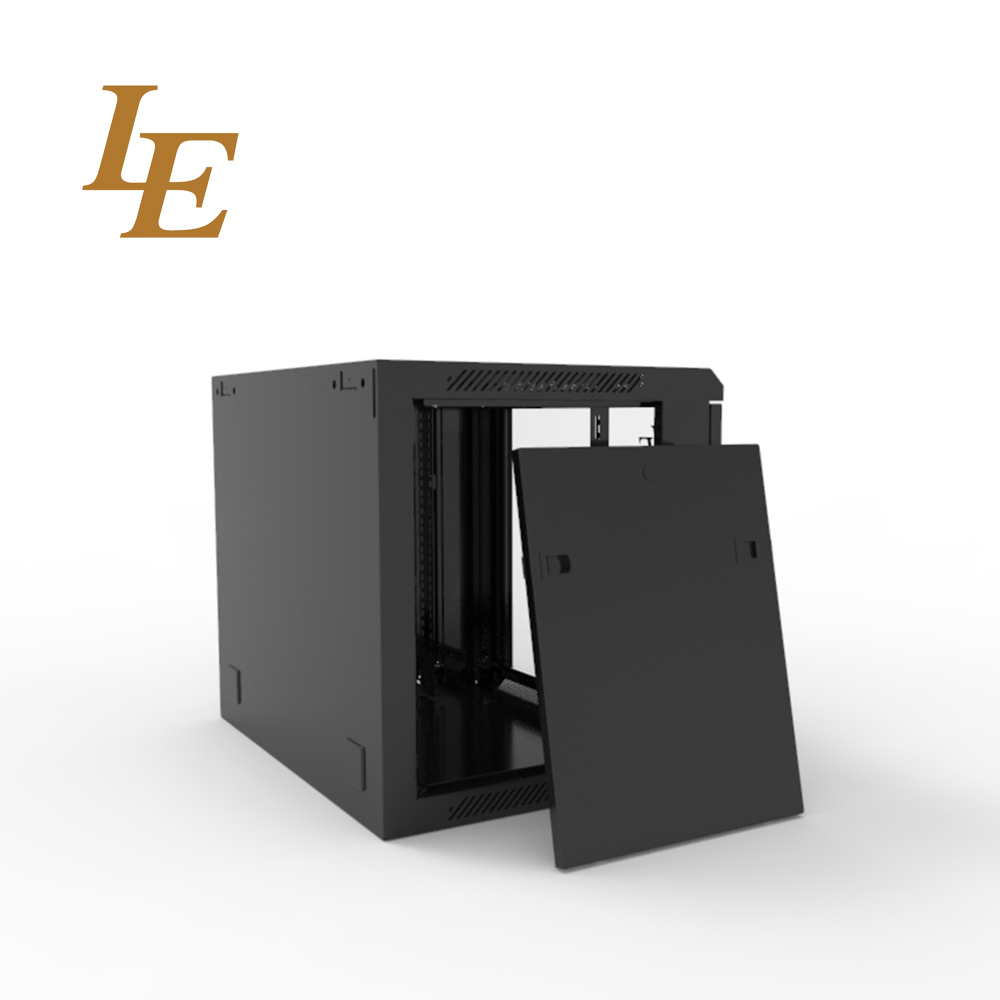

4. Side panel

5. Tempered glass front door

6. Tempered glass front door with

vented border

7. Tempered glass front door with

meshed border

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 5

FAQ

1. Q: Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Where is your factory located? How can I visit there?
A:Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or Shanghai airport, from home or abroad,
are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality controlling for to the every end. Our factory has gained
CE,ROHS,SGS authentication.

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 6
